Pelican Protector Case

Sensitive equipment needs protection, and since 1976 the answer has been the Pelican™ Protector Case. These cases are designed rugged, and travel the harshest environments on earth. Against the extreme cold of the arctic or the heat of battle, Pelican cases have survived.

Made in the USA, these tough cases are designed with an automatic purge valve that equalizes air pressure, a watertight silicone O-ring lid, over-molded rubber handles and stainless steel hardware. Our simple and strong double-throw latches keep the lid closed in the roughest handling.

So if you've got a camera that needs to stay dry, a gun that needs to stay dust-free or a laptop that has to work when it's needed most - go with a Pelican Protector Case™ wherever your adventures take you.

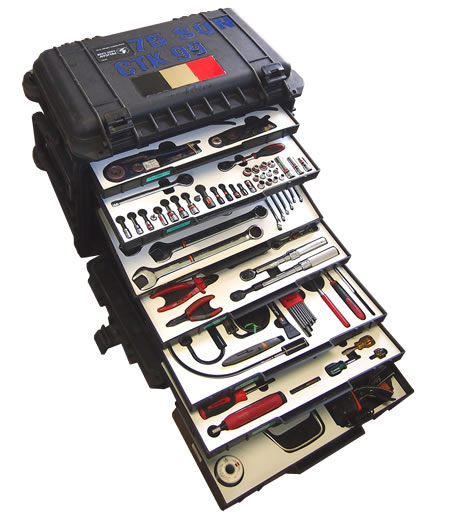

At Caseline we are able to offer high quality custom Pro-Inserts. Manufactured in-house our inserts can be designed for every PELICAN Case shape and size.

We use state of the art NC routing machines to custom cut foam cavities to accommodate your product and ensure maximum protection. These can be coupled with a screen printable polypropylene plastic top to order and display your items to your requirements.

Offering a range of foam and plastic top colours further extends the customisation service we can provide.



Case

Internal
Dimensions
(mm)

External
Dimensions
(mm)
Base+Lid (mm) Weight
with
Foam (kg)
Weight without
Foam (kg)
Wheels Extendable Handle Price
with Foam
(Inc-GST)
 Price
without
Foam
(Inc-GST)
1120 184x121x78 206x167x90 49+18 0.56 0.53 N N $59.57 $48.75
1150 208x144x92 232x192x110 37+18 0.9 0.8 N N $68.67 $59.57
1170 268x153x80 296x212x96 53+27 0.95 0.89 N N $87.95 $80.31
1200 235x181x105 270x246x124 74+30 1.3 1.2 N N $99.60 $82.34
1300 251x178x155 270x246x174 125+30 1.6 1.4 N N $114.46 $98.50
1400 300x225x132 339x295x152 102+30 2 1.8 N N $180.07 $153.05
1430 344x146x297 430x244x341 246+51 2.95 2.54 N N $190.13 $163.98
1440 434x190x406 500x305x457 355+51 7.48 6.58 Y Y $391.71 $337.01
1450 371x258x152 406x330x174 108+44 2.9 2.5 N N $230.37 $200.57
1460 471x252x277 529x323x324 153+125 5.66 3.97 N N $375.58 $307.95
1470 397x265x95 424x332x111 61+37 2.5 1.94 N N $267.15 $246.70
1490 451x289x105 504x354x119 67+38 2.95 2.48 N N $317.79 $291.28
1495 479x333x97 549x438x124 68+28 3.8 3.28 N N $351.57 $321.52
1500 425x284x155 470x357x176 109+46 3.2 2.9 N N $271.36 $236.41
1510 501x279x193 559x351x229 147+45 6.17 5.44 Y Y $388.04 $328.19
1520 454x324x171 485x392x192 125+45 4.24 3.76 N N $297.05 $256.53
1550 468x355x193 524x428x206 149+44 5.4 4.8 N N $337.01 $281.68
1560 517x392x229 560x445x265 178+51 9.07 7.71 Y Y $396.61 $355.78
1600 544x419x200 616x493x220 155+44 6.4 5.9 N N $397.37 $331.29
1610 550x422x268 627x497x303 218+52 10.2 9.07 Y Y $510.57 $437.61
1620 543x414x319 630x492x352 267+51 11.8 11.1 Y Y $558.86 $471.80
1630 703x533x394 794x615x444 308+83 16.33 14.06 Y Y $833.16 $723.31
1640 602x609x353 691x698x414 302+51 17.24 15.42 Y Y $663.58 $602.59
1650 724x441x267 781x520x295 224+46 16.1 13.2 Y Y $584.58 $502.46
1670 714x419x233 788x493x284 188+46 11.8 10.4 Y Y POA POA
1660 715x501x447 800x581x482 359+89 19.1 15.5 Y Y $813.84 $743.43
1690 762x635x406 847x722x463 308+73 19.5 15.42 Y Y $964.74 $871.7
1700 908x343x133 968x406x155 89+44 7.7 7.3 Y N $467.78 $417.09
1720 1066x343x133 1127x406x155 89+44 8.6 7.6 Y N $523.61 $460.43
1730 863x609x317 952x689x365 254+63 17.24 13.61 Y N $897.18 $787.19
1740 1041x328x308 1122x409x356 243+65 12.2 10 Y N $781.80 $672.57
1750 1283x343x133 1346x406x155 89+44 11.6 10.7 Y N $552.81 $479.39
1770 1386x396x219 1458x469x285 171+48 16.3 13.2 Y N $1102.17 $988.17
1780 1044x547x378 1140x643x419 185+193 22.2 17.4 Y N $1124.55 $1013.11
0340 457x457x457 521x521x489 343+114 13.5 10.9 Y N $702.52 $620.92
0350 508x508x508 572x570x540 381+127 14.5 11.8 O N $717.27 $660.30
0370 610x610x610 673x673x641 483+127 18.6 145.5 O N $863.78 $793.72
0450 Varies by drawer configuration. 608x375x456 N/A 18.82 14.97 Y Y $589.46 $503.95
0500 888x469x641 1015x596x728 584+57 26.6 22.7 O N $1901.6 $1677.86
0550 1208x611x449 1297x700x579 368+81 43.1 35.9 O N $1,921.45 $1,732.45

Pelican Protector 1120

Pelican Protector 1120

Internal sizes mm:

L-184 W-121 H-78

$48.75

See Buying Options
Pelican Protector 1150

Pelican Protector 1150

Internal sizes mm:

L-208 W-144 H-92

$59.57

See Buying Options
Pelican Protector 1170

Pelican Protector 1170

Internal sizes mm:

L-268 W-153 H-80

$80.31

See Buying Options
Pelican Protector 1200

Pelican Protector 1200

Internal sizes mm:

L-235 W-181 H-105

$82.34

See Buying Options
Pelican Protector 1300

Pelican Protector 1300

Internal sizes mm:

L-251 W-178 H-155

$98.50

See Buying Options
Pelican Protector 1400

Pelican Protector 1400

Internal sizes mm:

L-300 W-225 H-132

$153.05

See Buying Options
Pelican Protector 1430

Pelican Protector 1430

Internal sizes mm:

L-344 W-146 H-297

$163.98

See Buying Options
Pelican Protector 1440

Pelican Protector 1440

Internal sizes mm:

L-434 W-190 H-406

$337.01

See Buying Options
Pelican Protector 1450

Pelican Protector 1450

Internal sizes mm:

L-371 W-258 H-152

$200.57

See Buying Options
Pelican Protector 1460

Pelican Protector 1460

Internal sizes mm:

L-471 W-252 H-277

$307.95 16% OFF RRP $364.95

See Buying Options
Pelican Protector 1470

Pelican Protector 1470

Internal sizes mm:

L-397 W-265 H-95

$246.70

See Buying Options
Pelican Protector 1490

Pelican Protector 1490

Internal sizes mm:

L-451 W-289 H-105

$291.28

See Buying Options
Pelican Protector 1495

Pelican Protector 1495

Internal sizes mm:

L-479 W-333 H-97

$321.52

See Buying Options
Pelican Protector 1500

Pelican Protector 1500

Internal sizes mm:

L-425 W-284 H-155

$236.41

See Buying Options
Pelican Protector 1510

Pelican Protector 1510

Internal sizes mm:

L-501 W-279 H-193

$328.19

See Buying Options
Pelican Protector 1520

Pelican Protector 1520

Internal sizes mm:

L-454 W-324 H-171

$256.53

See Buying Options
Pelican Protector 1550

Pelican Protector 1550

Internal sizes mm:

L-468 W-355 H-193

$281.68

See Buying Options
Pelican Protector 1560

Pelican Protector 1560

Internal sizes mm:

L-517 W-392 H-229

$355.78

See Buying Options
Pelican Protector 1600

Pelican Protector 1600

Internal sizes mm:

L-544 W-419 H-200

$331.29

See Buying Options
Pelican Protector 1610

Pelican Protector 1610

Internal sizes mm:

L-550 W-422 H-268

$437.61

See Buying Options
Pelican Protector 1620

Pelican Protector 1620

Internal sizes mm:

L-543 W-414 H-319

$471.80

See Buying Options
Pelican Protector 1630

Pelican Protector 1630

Internal sizes mm:

L-703 W-533 H-394

$723.31

See Buying Options
Pelican Protector 1640

Pelican Protector 1640

Internal sizes mm:

L-602 W-609 H-353

$602.59

See Buying Options
Pelican Protector 1650

Pelican Protector 1650

Internal sizes mm:

L-724 W-441 H-267

$502.46

See Buying Options
Pelican Protector 1660

Pelican Protector 1660

Internal sizes mm:

L-715 W-501 H-447

$743.43

See Buying Options
Pelican Protector 1670

Pelican Protector 1670

Internal sizes mm:

L-714 W-419 H-233

$0.00

Pelican Protector 1690

Pelican Protector 1690

Internal sizes mm:

L-762 W-635 H-406

$871.70

See Buying Options
Pelican Protector 1700

Pelican Protector 1700

Internal sizes mm:

L-908 W-343 H-133

$417.09

See Buying Options
Pelican Protector 1720

Pelican Protector 1720

Internal sizes mm:

L-1066 W-343 H-133

$460.43

See Buying Options
Pelican Protector 1730

Pelican Protector 1730

Internal sizes mm:

L-863 W-609 H-317

$787.19

See Buying Options
Pelican Protector 1740

Pelican Protector 1740

Internal sizes mm:

L-1041 W-328 H-308

$672.57

See Buying Options
Pelican Protector 1750

Pelican Protector 1750

Internal sizes mm:

L-128 W-343 H-133

$479.39

See Buying Options
Pelican Protector 1770

Pelican Protector 1770

Internal sizes mm:

L-138 W-396 H-219

$988.17

See Buying Options
Pelican Protector 1780

Pelican Protector 1780

Internal sizes mm:

L-104 W-547 H-378

$1,013.11

See Buying Options
Pelican Protector 0340

Pelican Protector 0340

Internal sizes mm:

L-457 W-457 H-457

$620.92

See Buying Options
Pelican Protector 0350

Pelican Protector 0350

Internal sizes mm:

L-508 W-508 H-508

$660.30

See Buying Options
Pelican Protector 0370

Pelican Protector 0370

Internal sizes mm:

L-610 W-610 H-610

$793.72

See Buying Options
Pelican Protector 0450

Pelican Protector 0450

Internal sizes mm:

L-522 W-279 H-321

$503.95

See Buying Options
Pelican Protector 0500

Pelican Protector 0500

Internal sizes mm:

L-888 W-469 H-641

$1,677.86

See Buying Options
Pelican Protector 0550

Pelican Protector 0550

Internal sizes mm:

L-1208 W-611 H-449

$1,732.45

See Buying Options
